Introduction

Diginsight Components include observable or optimized extensions for other technologies, achieved through integration with the Diginsight observability platform and Diginsight Smartcache.

Each component is designed to address specific functionality areas (e.g., authentication, database access) while maintaining consistent observability and diagnostics capabilities.

Table of Contents

Why Diginsight Components

Diginsight Telemetry implements observability and diagnostics capabilities for .NET applications using OpenTelemetry and Azure Monitor.

Diginsight Smartcache implements optimized hybrid caching for .NET applications, combining in-memory and distributed caching strategies.

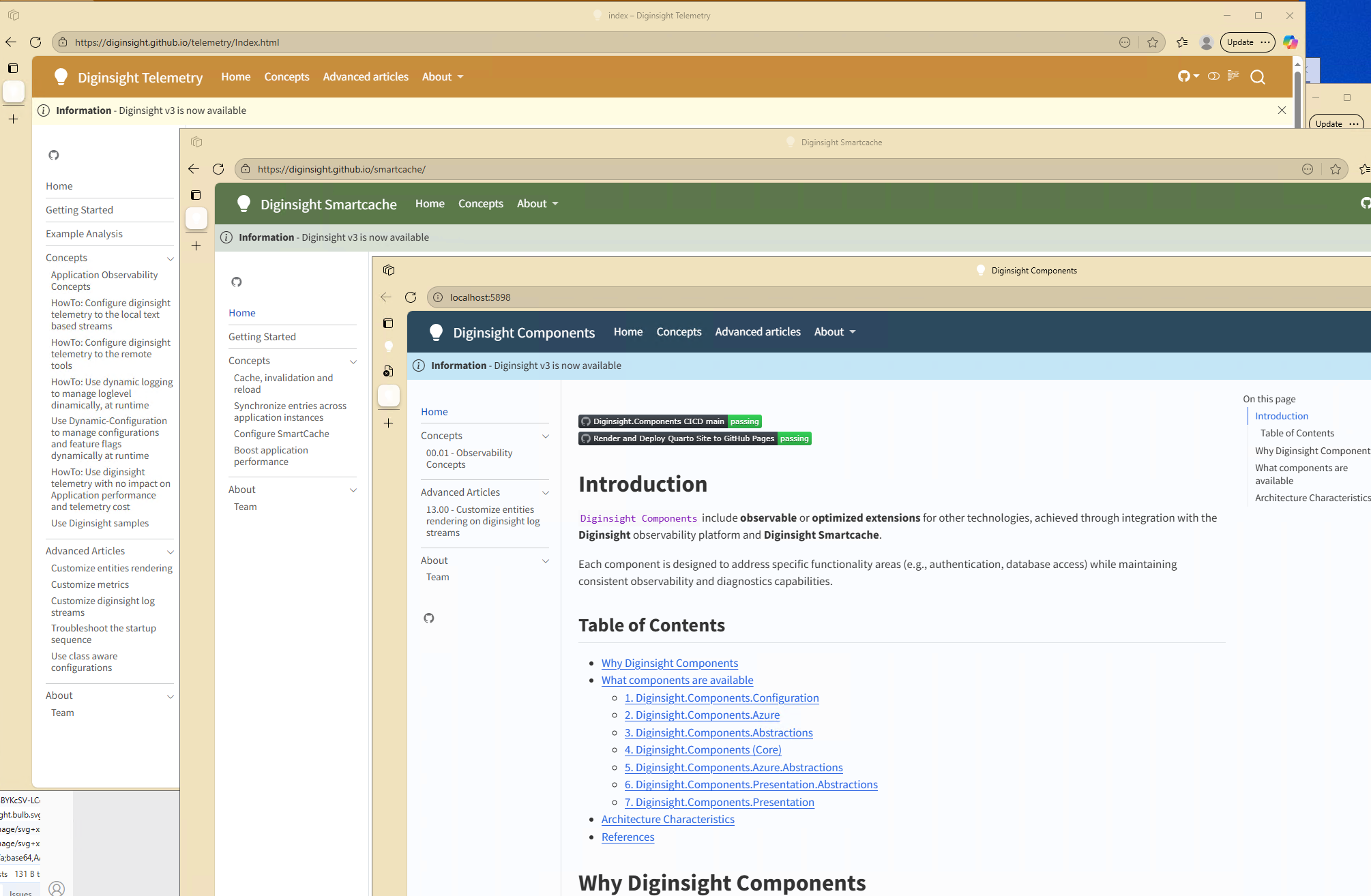

Diginsight repositories overview

Diginsight Components are built to take advantage of these capabilities, enhancing existing libraries with observability capabilities and performance optimization, where possible.

Diginsight Components are built with a layered architecture that promotes modularity and flexibility.

At the foundation, abstractions packages define core interfaces and contracts.

The core components provide essential functionality like authentication and HTTP client configuration.

Technology-specific components (like Azure integrations) extend the core capabilities for particular platforms. Finally, presentation components handle UI-related concerns.

This modular approach allows you to compose exactly the functionality your application needs—from a minimal observability setup using just the core components, to a full-featured enterprise solution with Azure integrations, advanced caching, and presentation layers.

What components are available

Diginsight.Components.Configuration

  • Purpose: Observable extensions for Diginsight configuration with Azure Key Vault, Console, Log4Net, and OpenTelemetry.
  • Key features:
    • Azure Key Vault integration.
    • Activity source detection and registration.
    • OpenTelemetry runtime instrumentation.
    • Azure Monitor integration.
    • Dependencies: Azure.Core, Azure.Identity, Azure.Extensions.AspNetCore.Configuration.Secrets.

Diginsight.Components.Abstractions

  • Purpose: Core abstractions and interfaces for Diginsight.Components assembly.
  • Key features:
    • IDebugService interface for conditional debug operations.
    • Base contracts for other components.

Diginsight.Components (Core)

  • Purpose: Main component library with common functionality.
  • Key features:
    • HTTP client configuration (HttpClientOptions).
    • Authentication and security features.
    • JWT token handling.
    • Microsoft Identity Client integration.
    • Cryptography support.

Diginsight.Components.Azure.Abstractions

  • Purpose: Abstractions and interfaces for Diginsight.Components.Azure assembly.
  • Key features:
    • IDebugService interface for conditional debug operations.
    • Base contracts for other components.

Diginsight.Components.Azure

  • Purpose: Azure-specific functionality and integrations.
  • Key features:
    • CosmosDB Observable extensions: CosmosDB Container query extensions integrated with Diginsight observability and exposing advanced metrics (e.g., query_cost).
    • Azure Table Observable extensions: Azure Table query extensions integrated with Diginsight observability.
    • Other Azure service observable extensions.

Diginsight.Components.Presentation.Abstractions

  • Purpose: Abstractions and interfaces for Diginsight.Components.Presentation assembly.
  • Key features:
    • IDebugService interface for conditional debug operations.
    • Base contracts for other components.

Diginsight.Components.Presentation

  • Purpose: UI/Presentation layer components.
  • Status: Currently appears to be a placeholder (contains only Class1).

Architecture Characteristics

Each component follows these patterns:

  1. Observability Integration: Every component includes an Observability class that:

    • Creates an ActivitySource for distributed tracing.
    • Registers with the ObservabilityRegistry.
    • Provides consistent logging infrastructure.

  2. Modular Design: Components can be used independently or together, with clear separation of concerns.

  3. Azure Integration: Strong focus on Azure cloud services with built-in monitoring and configuration support.

  4. OpenTelemetry Standards: Uses industry-standard observability patterns for metrics, traces, and logs.
